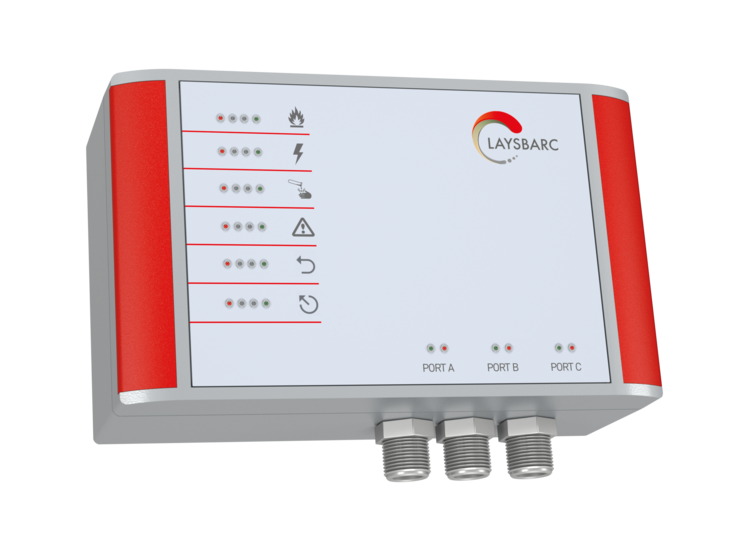

aluCASE with red design covers

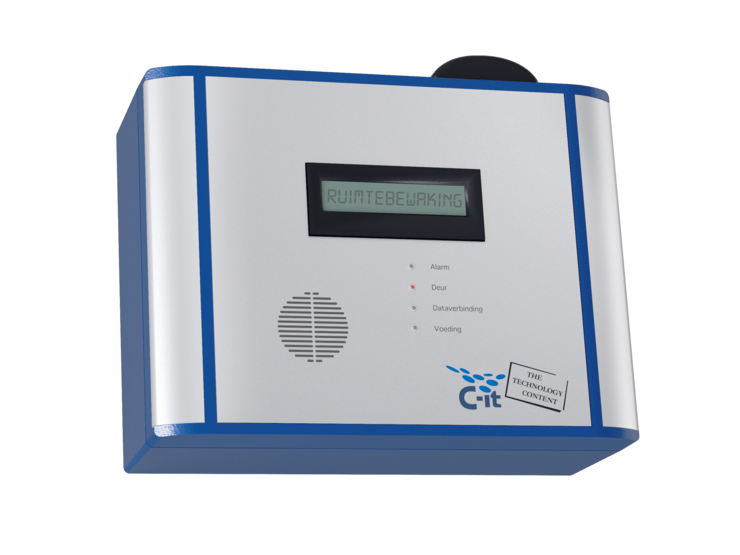

aluCASE enclosures application

aluCASE - premium diecast aluminum enclosures with many unique features

Plenty of space inside for the electronics

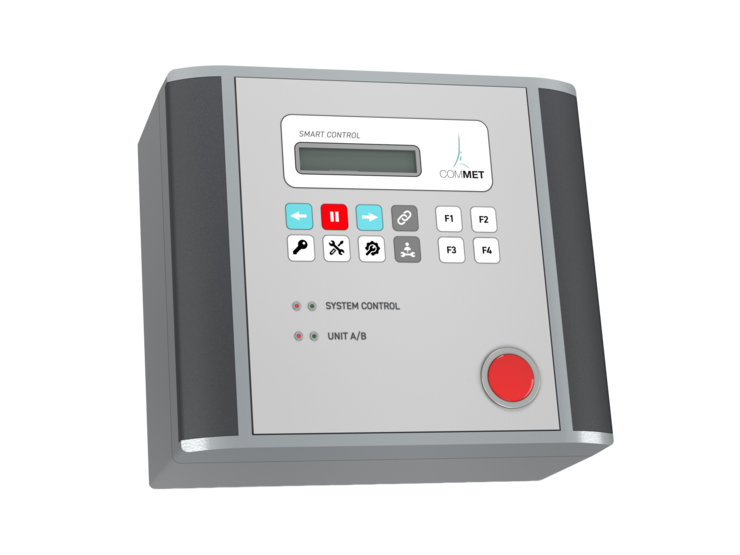

Recessed lid for fitting a membrane keypad, label or face plate

Snap-on lid trims hide all fixing screws

aluCASE can be mounted without opening the lid (protecting the electronics inside)

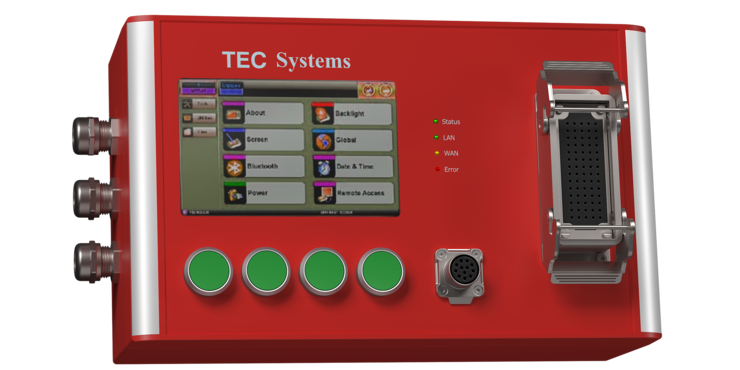

Standard lid retaining straps

Two versions with transparent lid

Optional exterior hinges (without visible screws)

Optional key lock for security




aluCASE

Our premium enclosure range in diecast aluminum

CSA USA registered   Germanischer Lloyd Certified   UL certified

IP 66, IP 67 - Optional: IP 69K

The key product features:
• Enclosure material: Die-cast aluminium
• Enclosure surface: powder coating, RAL 7040
• Integrated lid support
• Transparent lid for the sizes AC 092K and ACF 110K
• Enclosure can be mounted even when the lid is fitted
• Integrated recess in lid for membrane keypad or front plate
• Clip-on design covers
• Lid screws in stainless steel 1.4567
• Enclosure seal: TPE moulded gasket, PUR

---

aluCASE is a highly attractive and very versatile range of diecast aluminum enclosures for industrial electronics. The design is perfect for mounting to a wall or a machine, or for use as a mobile instrument. The enclosures are sealed to IP 67 for indoor and outdoor applications. Hot jet wash IP 69K is also available. The enclosures can be mounted without opening the lid which means your electronics remain protected at all times. Whatever the application, aluCASE provides the very best housing solution for your components.

Designer features include a recessed lid, for fitting a membrane keypad, front plate or product label, clip-on design covers in plastic or aluminum that hide the lid screws and mounting holes, integrated hinges and lid retaining straps (on most models). Two versions are available with transparent lids. Threaded screw bosses are provided in the base and lid for PCBs, mounting plates, DIN rails etc. Cable glands and other accessories are also available.

We can supply aluCASE enclosures fully customized to your requirements.

Generate PDF






aluCASE Enclosures Dimensions
  Type Part No. Length Width Height Weight (g) Mounting point D Mounting point E Silicon-gasket Design covers Alu Design covers POM Shielding Integrated lid supports Corrosion proof coating Protection Class IP 69K Hinges Insert lock Transparent lid Designed gasket PUR Gasket Protection Class IP 66 Protection Class IP 67 Download 3D-Model-Download Add to my list
190.110.000 ACF 110 190.110.000 5,51 4,33 2,36 700 4,80 2,36 - o o o o o o - - Download 3D-Model-Download Add to my list
190.112.000 ACF 112 190.112.000 7,87 4,33 2,36 880 7,17 2,36 - o o o o o - - - Download 3D-Model-Download Add to my list
190.130.000 ACF 130 190.130.000 6,30 5,12 2,76 910 5,59 3,15 - o o o o o o - - Download 3D-Model-Download Add to my list
190.132.000 ACF 132 190.132.000 8,66 5,12 2,76 1130 7,95 3,15 - o o o o o o - - Download 3D-Model-Download Add to my list
190.150.000 ACF 150 190.150.000 7,09 5,91 2,36 968 6,38 3,94 - o o o o o o - - Download 3D-Model-Download Add to my list
190.152.000 ACF 152 190.152.000 10,24 5,91 2,36 1273 9,53 3,94 - o o o o o o - - Download 3D-Model-Download Add to my list
190.170.000 ACF 170 190.170.000 7,87 6,69 2,36 1096 7,17 4,72 - o o o o o o - - Download 3D-Model-Download Add to my list
190.172.000 ACF 172 190.172.000 11,02 6,69 2,36 1471 10,31 4,72 - o o o o o o - - Download 3D-Model-Download Add to my list
190.200.100 ACF 200 190.200.100 9,06 7,87 3,54 1720 8,35 5,67 - - o o o o o - - Download 3D-Model-Download Add to my list
191.052.000 AC 052 191.052.000 2,95 1,97 1,30 134 2,40 1,34 - - o - o o - - - - Download 3D-Model-Download Add to my list
191.054.000 AC 054 191.054.000 3,94 1,97 1,30 166 3,39 1,34 - - o - o o - - - - Download 3D-Model-Download Add to my list
191.070.000 AC 070 191.070.000 3,94 2,76 1,97 328 3,31 1,30 - - o - o o - - - - Download 3D-Model-Download Add to my list
191.072.000 AC 072 191.072.000 5,51 2,76 1,97 411 4,88 1,30 - - o - o o - - - - Download 3D-Model-Download Add to my list
191.074.000 AC 074 191.074.000 7,09 2,76 1,97 495 6,46 1,30 - - o - o o - - - - Download 3D-Model-Download Add to my list
191.090.000 AC 090 191.090.000 4,72 3,54 2,36 580 4,02 1,57 - o o o o - - - - Download 3D-Model-Download Add to my list
191.092.000 AC 092 191.092.000 6,30 3,54 2,36 680 5,59 1,57 - o o o o - - - - Download 3D-Model-Download Add to my list
191.094.000 AC 094 191.094.000 9,84 3,54 2,36 861 9,13 1,57 - o o o o - - - - Download 3D-Model-Download Add to my list
191.150.000 AC 150 191.150.000 7,09 5,91 3,54 1216 6,38 3,94 - o o o o o o - - Download 3D-Model-Download Add to my list
191.152.000 AC 152 191.152.000 10,24 5,91 3,54 1569 9,53 3,94 - o o o o o o - - Download 3D-Model-Download Add to my list
191.170.000 AC 170 191.170.000 7,87 6,69 3,54 1430 7,17 4,72 - o o o o o o - - Download 3D-Model-Download Add to my list
191.172.000 AC 172 191.172.000 11,02 6,69 3,54 1789 10,31 4,72 - o o o o o o - - Download 3D-Model-Download Add to my list
191.200.100 AC 200 191.200.100 9,06 7,87 4,72 2005 8,35 5,67 - - o o o o o - - Download 3D-Model-Download Add to my list
191.202.100 AC 202 191.202.100 12,99 7,87 4,72 2328 12,28 5,67 - - o o o o o - - Download 3D-Model-Download Add to my list
191.250.100 AC 250 191.250.100 11,02 9,84 4,72 2643 10,31 7,64 - - o o - o o - - - Download 3D-Model-Download Add to my list
191.252.100 AC 252 191.252.100 14,96 9,84 4,72 3295 14,25 7,64 - - o o - o o - - - Download 3D-Model-Download Add to my list
191.300.100 AC 300 191.300.100 12,99 11,81 4,72 3353 12,28 9,61 - - o o - o o - - - Download 3D-Model-Download Add to my list
191.302.100 AC 302 191.302.100 16,93 11,81 4,72 4092 16,22 9,61 - - o o - o o - - - Download 3D-Model-Download Add to my list
192.092.000 AC 092K 192.092.000 6,30 3,54 2,36 680 5,59 1,57 o o - o o - - o - Download 3D-Model-Download Add to my list
192.110.000 ACF 110K 192.110.000 5,51 4,33 2,36 534 4,80 2,36 o o - o o - - o - Download 3D-Model-Download Add to my list
  Part No. Length Width Height Add to my list
190.110.000 190.110.000 5,51 4,33 2,36 Add to my list
190.112.000 190.112.000 7,87 4,33 2,36 Add to my list
190.130.000 190.130.000 6,30 5,12 2,76 Add to my list
190.132.000 190.132.000 8,66 5,12 2,76 Add to my list
190.150.000 190.150.000 7,09 5,91 2,36 Add to my list
190.152.000 190.152.000 10,24 5,91 2,36 Add to my list
190.170.000 190.170.000 7,87 6,69 2,36 Add to my list
190.172.000 190.172.000 11,02 6,69 2,36 Add to my list
190.200.100 190.200.100 9,06 7,87 3,54 Add to my list
191.052.000 191.052.000 2,95 1,97 1,30 Add to my list
191.054.000 191.054.000 3,94 1,97 1,30 Add to my list
191.070.000 191.070.000 3,94 2,76 1,97 Add to my list
191.072.000 191.072.000 5,51 2,76 1,97 Add to my list
191.074.000 191.074.000 7,09 2,76 1,97 Add to my list
191.090.000 191.090.000 4,72 3,54 2,36 Add to my list
191.092.000 191.092.000 6,30 3,54 2,36 Add to my list
191.094.000 191.094.000 9,84 3,54 2,36 Add to my list
191.150.000 191.150.000 7,09 5,91 3,54 Add to my list
191.152.000 191.152.000 10,24 5,91 3,54 Add to my list
191.170.000 191.170.000 7,87 6,69 3,54 Add to my list
191.172.000 191.172.000 11,02 6,69 3,54 Add to my list
191.200.100 191.200.100 9,06 7,87 4,72 Add to my list
191.202.100 191.202.100 12,99 7,87 4,72 Add to my list
191.250.100 191.250.100 11,02 9,84 4,72 Add to my list
191.252.100 191.252.100 14,96 9,84 4,72 Add to my list
191.300.100 191.300.100 12,99 11,81 4,72 Add to my list
191.302.100 191.302.100 16,93 11,81 4,72 Add to my list
192.092.000 192.092.000 6,30 3,54 2,36 Add to my list
192.110.000 192.110.000 5,51 4,33 2,36 Add to my list

⬤ standard   o available   - not available




Certifications

CSA (optional)
Germanischer Lloyd (optional)
UL (optional)

Enclosure sizes

29

Additional info

Can be fastened while enclosure is closed
Integrated recess in the lid for a membrane keypad, front plate or label
Integrated PP (polypropylene) lid support strap
2 sizes available with transparent lids
Clip-on design covers, standard: Plastic POM (polyoxymethylene), similar to RAL 7040 window gray
Optional: Anodized aluminum design covers
Optional: Exterior hinges made from anodized aluminum with no visible outer screws

Enclosure

Diecast aluminum alloy
EN AN-44300 DIN EN 1706
(GD Al Si 12/DIN 1725)
1° mold slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom.

Fastening

Separate screw channels

Internal mounting

M5 fastening thread on the enclosure base and in the lid

Ingress protection

IP 66, IP 67 / EN 60529
Optional: IP 69K / DIN 40050

Gasket

TPE molded gasket, silicone-free
Optional: Silicone gasket

Lid screws

Stainless steel 1.4567, captive

Surface

Powder coating RAL 7040, window gray
Optional: Special colors
Optional: Corrosion protection

Customizing

Learn more about our full customizing service for installation-ready enclosures
