handCASE enclosures application

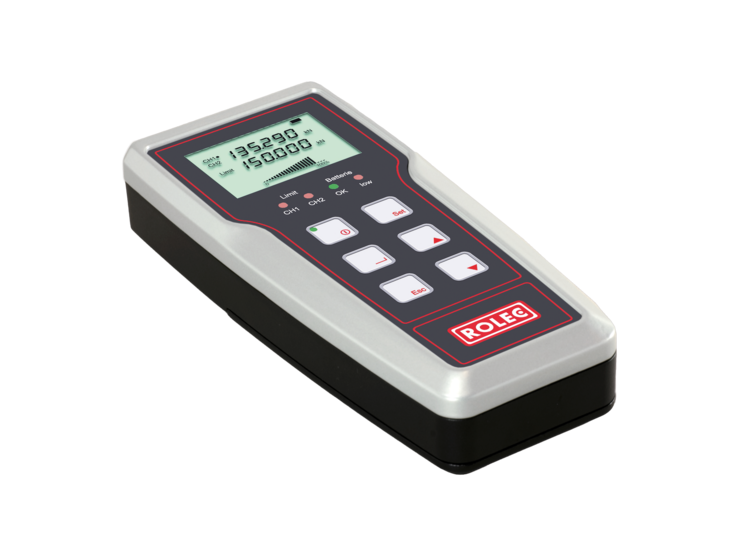

Version S with T shaped keypad area, in metallic silver/black RAL 9005

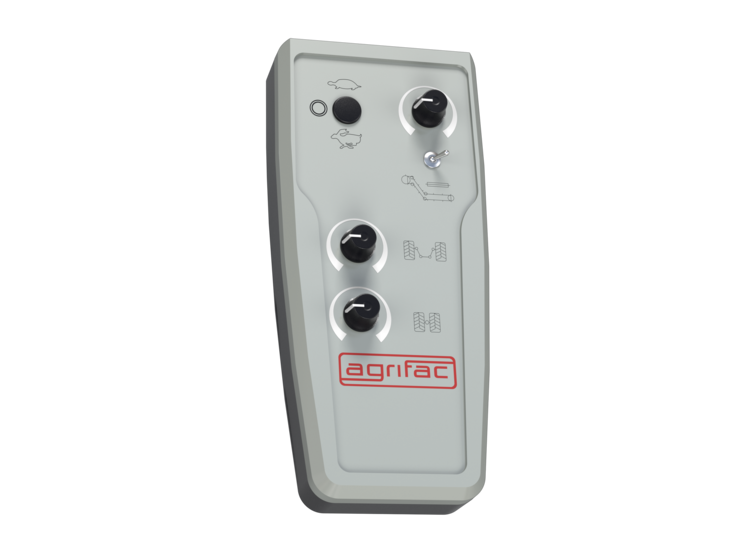

Version R with full keypad area, in light gray RAL 7035
Version with integrated battery compartment
Both versions have a recessed top for a membrane keypad
Screw pillars inside for fitting PCBs, displays etc
Accessory spring clip/holding bracket kit for storing the unit
Accessory shoulder strap with protective caps for carrying the device
IP 66, Optional: IP 67
The key product features:
• Enclosure material: Die-cast aluminium
• Enclosure surface:
• handCASE lid: powder coating, silver-metallic
• handCASE bottom: powder coating, RAL 9005
• handCASE-R: powder coating, RAL 7035
• Holding clip and mounting bracket
• Shoulder strap with protective caps for mobile use
• Battery compartment
• For internal power supply
• Lid screws stainless steel 1.4567
• Integrated recess in cover for membrane keypad or front plate
• Ergonomic design for non-fatiguing work
• Ingress protection IP 66
• Enclosure seal: TPE moulded gasket, silicone-free
---
handCASE is a stylish and highly robust range of handheld enclosures in diecast aluminum. Thanks to their ergonomic design these enclosures sit very comfortably in the hand. The high strength of handCASE provides solid protection for internal electronics and components under the most extreme conditions.
The enclosures are tested to IP 66 protection class and are available with or without battery compartments for 1.5V AA and 9V cells. Threaded screw bosses are provided inside for fitting circuit boards, mounting plates etc. Cable glands and other accessories are also available.
We can supply handCASE enclosures fully customized to your requirements.
handCASE R - linearly designed lid with a narrow edge for optimal use of the surface
handCASE S - visually appealing lid with ergonomic bevel for perfect ergonomics
| Type | Part No. | Length | Width | Height | Weight (g) | Battery compartment | Designed gasket | Protection Class IP 66 | Download | 3D-Model-Download | Add to my list | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCF 080 | 270.080.000 | 7,09 | 3,15 | 1,67 | 450 | ⬤ | ⬤ | ⬤ | Download |
|
|
|
HCF 081 | 270.081.000 | 7,09 | 3,15 | 1,67 | 430 | - | ⬤ | ⬤ | Download |
|
|
|
HCF 100 | 270.100.000 | 8,66 | 3,94 | 1,67 | 600 | ⬤ | ⬤ | ⬤ | Download |
|
|
|
HC 100 | 271.100.000 | 8,66 | 3,94 | 2,46 | 660 | - | ⬤ | ⬤ | Download |
|
|
| Part No. | Length | Width | Height | Add to my list | |
|---|---|---|---|---|---|
|
|
270.080.000 | 7,09 | 3,15 | 1,67 |
|
|
|
270.081.000 | 7,09 | 3,15 | 1,67 |
|
|
|
270.100.000 | 8,66 | 3,94 | 1,67 |
|
|
|
271.100.000 | 8,66 | 3,94 | 2,46 |
|
handCASE R - linearly designed lid with a narrow edge for optimal use of the surface
| Type | Part No. | Length | Width | Height | Weight (g) | Battery compartment | Designed gasket | Protection Class IP 66 | Download | 3D-Model-Download | Add to my list | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCF 080 R | 272.080.000 | 7,09 | 3,15 | 1,67 | 450 | ⬤ | ⬤ | ⬤ | Download |
|
|
|
HCF 081 R | 272.081.000 | 7,09 | 3,15 | 1,67 | 430 | - | ⬤ | ⬤ | Download |
|
|
|
HCF 100 R | 272.100.000 | 8,66 | 3,94 | 1,67 | 600 | ⬤ | ⬤ | ⬤ | Download |
|
|
|
HC 100 R | 273.100.000 | 8,66 | 3,94 | 2,46 | 660 | - | ⬤ | ⬤ | Download |
|
|
| Part No. | Length | Width | Height | Add to my list | |
|---|---|---|---|---|---|
|
|
272.080.000 | 7,09 | 3,15 | 1,67 |
|
|
|
272.081.000 | 7,09 | 3,15 | 1,67 |
|
|
|
272.100.000 | 8,66 | 3,94 | 1,67 |
|
|
|
273.100.000 | 8,66 | 3,94 | 2,46 |
|
4 versions, 2 lid variants
Integrated recess in the lid for membrane keypad or front plates
Ergonomic design for non-fatiguing work
Alternative lid design for all enclosure sizes
Optional: Battery compartment made from ABS for 2 versions
Die-cast aluminum allow:
EN AN-44300 DIN EN 1706
(GD Al Si 12/DIN 1725).
1° mold slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom
Optional: Holding clip (e.g. for strap)
Optional: Wall bracket for clip fastening
Optional: Carrying strap with protector
M3 fastening thread on the enclosure base and in the lid
IP 66 / EN 60529
Optional: IP 67 / EN
Free-fall DIN EN 60068-2-32
TPE molded gasket, silicone-free
Stainless steel 1.4567, captive
Powder coating
Lid: Silver metallic
Bottom: RAL 9005, deep black
Optional: Special colors
Learn more about our full customizing service for installation-ready enclosures
Ingress protection
Lid screws
