IP 66
The key product features:
• Enclosure material: glass-fibre reinforced polyester
• Enclosure surface: similar to RAL 7032
• Integrated hinges
• Integrated viewing panel
• Large selection of locking plugs
• Lid screws in polyamide
• Flammability: UL-94 V-0
• Ingress protection IP 66
• Enclosure seal: O-ring gasket (CR)
---

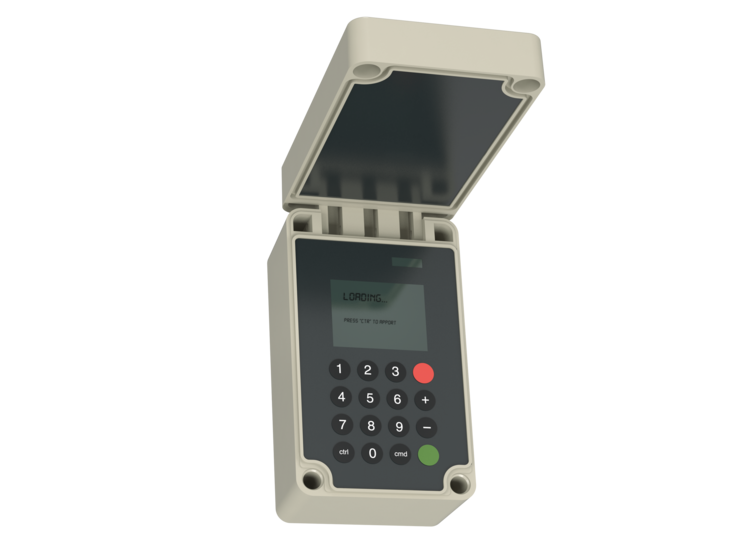

polyDOOR is a range of weather-resistant IP 66 enclosures in glass-fibre reinforced polyester that features a hinged front lid for easy access. The enclosures are ideal for industrial electronics and control equipment used in harsh indoor and outdoor applications.
Special features include integrated hinges for opening the lid, transparent front windows and optional lid fixings: slotted (standard), triangular or square head for tamper protection, and hand screws for fast access. Threaded fixing pillars are provided inside for mounting the components. polyDOOR is available in a wide range of standard sizes. Cable glands and other accessories such as terminal rails and mounting plates are also available.
We can supply polyDOOR enclosures fully customized to your requirements.
Type | Part No. | Length | Width | Height | Weight (g) | Mounting point D | Mounting point E | External mounting brackets | Silicon-gasket | Handscrew | Mounting plates | Cross rail | Hinges | Supporting rail for series terminals | Slotted head screw | Triangular screw | Collar-head screw | Protection Class IP 66 | Download | 3D-Model-Download | Add to my list | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PD 120 | 130.120.000 | 5,51 | 4,72 | 3,94 | 850 | 4,65 | 3,86 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 122 | 130.122.000 | 7,87 | 4,72 | 3,94 | 1060 | 7,01 | 3,86 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 124 | 130.124.000 | 10,24 | 4,72 | 3,94 | 1250 | 9,37 | 3,86 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 160 | 130.160.000 | 7,09 | 6,30 | 3,94 | 1180 | 6,22 | 5,43 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 162 | 130.162.000 | 10,24 | 6,30 | 3,94 | 1500 | 9,37 | 5,43 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 164 | 130.164.000 | 13,39 | 6,30 | 3,94 | 1790 | 12,52 | 5,43 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 200 | 130.200.000 | 8,66 | 7,87 | 4,72 | 1800 | 7,80 | 7,01 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 202 | 130.202.000 | 12,60 | 7,87 | 4,72 | 2280 | 11,73 | 7,01 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 120 FE | 131.120.000 | 5,51 | 4,72 | 3,94 | 850 | 4,65 | 3,86 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 122 FE | 131.122.000 | 7,87 | 4,72 | 3,94 | 1060 | 7,01 | 3,86 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 124 FE | 131.124.000 | 10,24 | 4,72 | 3,94 | 1250 | 9,37 | 3,86 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 160 FE | 131.160.000 | 7,09 | 6,30 | 3,94 | 1180 | 6,22 | 5,43 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 162 FE | 131.162.000 | 10,24 | 6,30 | 3,94 | 1500 | 9,37 | 5,43 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 164 FE | 131.164.000 | 13,39 | 6,30 | 3,94 | 1790 | 12,52 | 5,43 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 200 FE | 131.200.000 | 8,66 | 7,87 | 4,72 | 1800 | 7,80 | 7,01 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
![]() |
PD 202 FE | 131.202.000 | 12,60 | 7,87 | 4,72 | 2280 | 11,73 | 7,01 | o | o | o | o | o | ⬤ | o | ⬤ | o | o | o | ⬤ | Download |
![]() |
![]() |
Part No. | Length | Width | Height | Add to my list | |
---|---|---|---|---|---|
![]() |
130.120.000 | 5,51 | 4,72 | 3,94 |
![]() |
![]() |
130.122.000 | 7,87 | 4,72 | 3,94 |
![]() |
![]() |
130.124.000 | 10,24 | 4,72 | 3,94 |
![]() |
![]() |
130.160.000 | 7,09 | 6,30 | 3,94 |
![]() |
![]() |
130.162.000 | 10,24 | 6,30 | 3,94 |
![]() |
![]() |
130.164.000 | 13,39 | 6,30 | 3,94 |
![]() |
![]() |
130.200.000 | 8,66 | 7,87 | 4,72 |
![]() |
![]() |
130.202.000 | 12,60 | 7,87 | 4,72 |
![]() |
![]() |
131.120.000 | 5,51 | 4,72 | 3,94 |
![]() |
![]() |
131.122.000 | 7,87 | 4,72 | 3,94 |
![]() |
![]() |
131.124.000 | 10,24 | 4,72 | 3,94 |
![]() |
![]() |
131.160.000 | 7,09 | 6,30 | 3,94 |
![]() |
![]() |
131.162.000 | 10,24 | 6,30 | 3,94 |
![]() |
![]() |
131.164.000 | 13,39 | 6,30 | 3,94 |
![]() |
![]() |
131.200.000 | 8,66 | 7,87 | 4,72 |
![]() |
![]() |
131.202.000 | 12,60 | 7,87 | 4,72 |
![]() |
CSA (optional)
UL (optional)
8
Corrosion-resistant lid fastening thread made form stainless steel
Various locking screws available
Application-specific accessories available
Full protective insulation in accordance with VDE 0100
Polyester glass fiber reinforced, halogen-free
similar to RAL 7032, pebble gray, surface resistance< 109 Ohm
Optional: similar to RAL 9005, deep black, surface resistance< 109 Ohm
1° mold slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom.
UL 94 V-0, self-extinguishing
Single-channel lid and assembly fastening outside of the enclosure interior
Optional: External mounting brackets made from stainless steel
M6 fastening thread on the enclosure floor
IP 66 / EN 60529
EPDM O-ring gasket
Optional: Silicone gasket
Polyamide, corrosion-resistant and captive, slotted design
Optional lid screws: triangular, square and hand screw
Learn more about our full customizing service for installation-ready enclosures
Material
TestReports/Certificates
