Designer suspension arm system for medium to heavy loads
The key product features:
• System parts material: Die-cast aluminium, powder coating, RAL 7035
• Suspension profile material: Aluminium profile, in anodised silver
• Integrated cable protection in all joint parts
• Integrated set screw system for adjusting the pivoting range
• Many couplings with pre-fitted suspension profile as standard
• Can be used with all ROLEC control enclosures; the perfect complement to ‘multiPANEL’ and ‘profiPANEL’
• Possible to route connectors such as HDMI, DVI, network adapters, etc.
• Comprehensive potential equalisation
• Gasket: Chloroprene (CR)

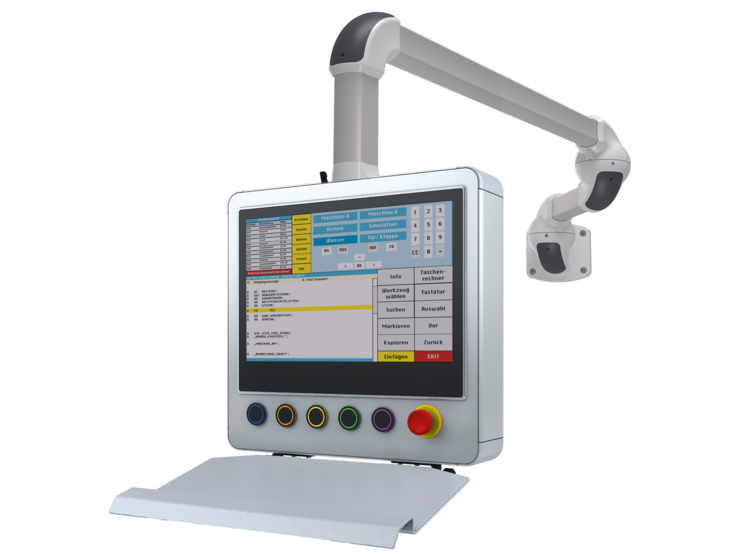

profiPLUS 70 is a modern suspension arm system which combines ergonomic design with advanced technology. The highly attractive appearance perfectly matches the design of modern machines. profiPLUS 70 offers more room for cables and connections than the smaller profiPLUS 50 system. At the same time, the system's bearing strength is significantly higher.
The profiPLUS 70 system is designed for time-saving assembly. For this, ROLEC engineers have developed the "one-screw adjustment" feature which means the system can be fully adjusted by just a single screw. All system couplings are pre-fitted with a support profile as standard, saving assembly time. The ducts in the interior of the system provide space for multiple cables such as HDMI, DVI and network cables. Cable protectors are integrated into all rotating system elements as standard. Fully integrated electrical bonding protects operators and the machinery. A set screw system in the joints allows adjustment of the pivoting range in 30° steps. The range includes reducing adapter for connecting to the profiPLUS 50, thus making it possible to mount display panels from leading manufacturers such as Siemens, B&R and Beckhoff.
Feel free to use our practical suspension arm configurator. Please choose whether you want a horizontal or vertical alignment.
PrincipleEconomic, compact and elegant designer suspension arm system for medium to heavy loads
Additional infoPossible to connect control enclosures from leading manufacturers such as Siemens, Beckhoff, B&R and ROLEC
The spacious cable routing offers an optimum connection with all interfaces, sufficient space is available for a range of cables and connectors

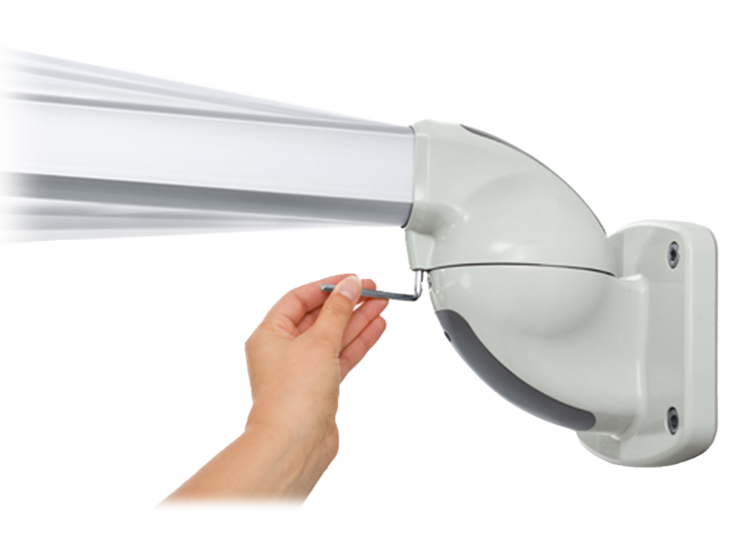

Patented ROLEC solution for alignment of the complete system in a horizontal direction through a single set screw!
Continuous equipotential bonding, DIN VDE 0113 / EN 60204-1 / IEC 204-1
All couplings are equipped with pre-fitted support profile as standard
Integrated cable protection in all system parts

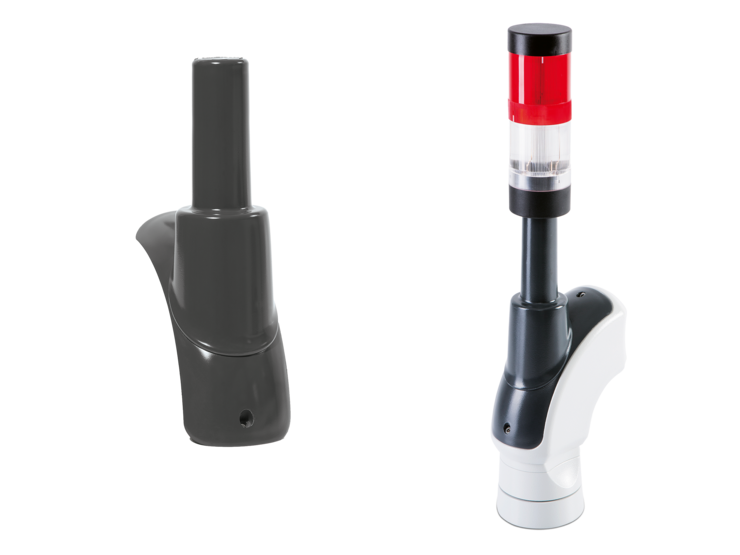

Optional: Signal light adapters for joint and elbow
Material/coatingDiecast aluminum alloy, powder coated RAL 7035 light gray
Optional: Special colors
Support profiles: Extruded aluminum profile, anodized silver, preformed fastening thread
Optional: Anodized special colors or powder coated
Covers: Plastic (POM), RAL 7015 slate gray

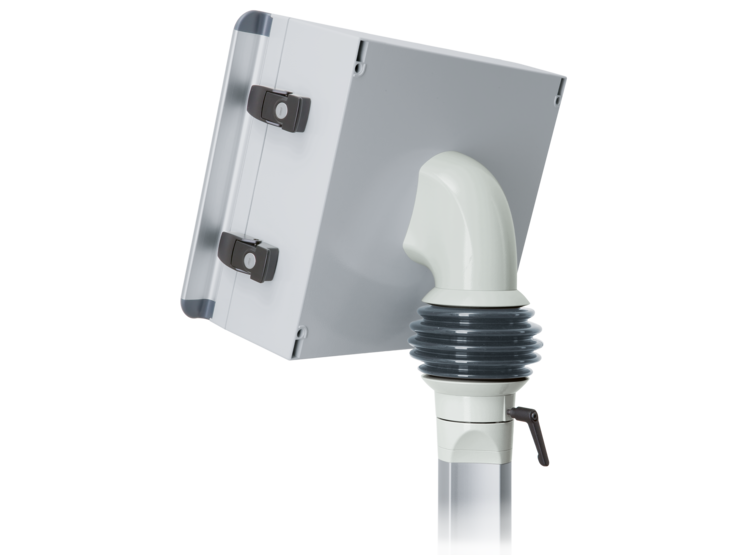

Bellows: PVC-P, RAL 7016 anthracite gray, temperature resistance: -30°C to +70°C
GasketChloroprene O-ring gasket (CR)

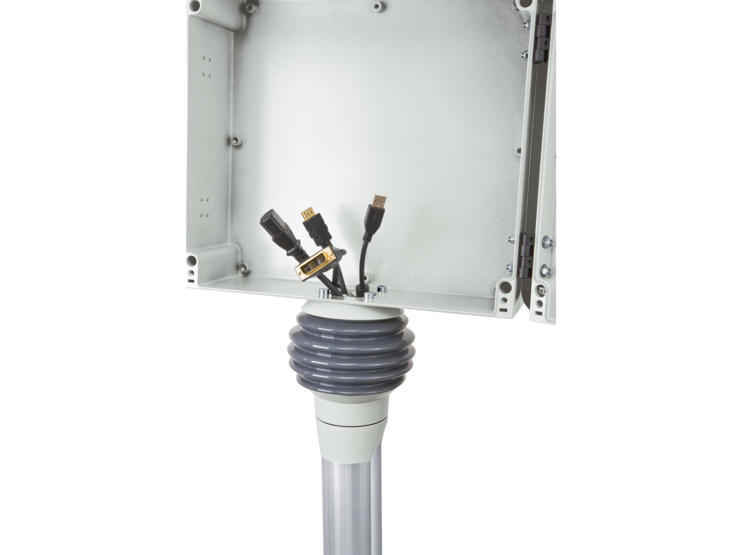

Cable routingSuitable for HDMI, patch cables, DVI, USB, cold-device plugs etc.
Ingress protectionIP 54 / EN 60529CustomizingLearn more about our full customizing service for installation-ready enclosures
A = Adjustable
